Product Description:

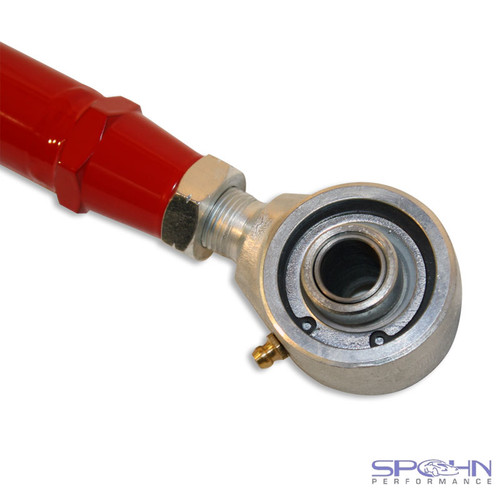

Spohn Performance Del-Sphere Pivot Joint with Spacers for Panhard Bar - 3/4"-16 Left Hand Threads
Specifications: These Del-Sphere pivot joints can be used to replace spherical rod ends or threaded poly ends on Spohn or any brand panhard bar that has a 3/4"-16 left hand thread. The Del-Sphere pivot joint comes complete with spacers, jam nut, and grease fitting. This set up is for mounting with a 14mm or 9/16" bolt and inside of a 1.875" i.d. mounting bracket.
The panhard bar bushings have a significant impact on your vehicle's ride, comfort, handling, acceleration, noise, and vibration. When the vehicle leans (rolls) in a turn, one side of the chassis moves up relative to the rear axle and the other side moves down.
The panhard bar must twist to allow for the axle to articulate, this causes the panhard bar bushings to bind. If this bind becomes excessive, it will raise the rear wheel rate and produce sudden and uncontrolled changes in handling such as snap oversteer.
The factory minimizes this suspension bind by using compliant rubber bushings. These soft bushings help accommodate the necessary motion of the control arms during body roll. However, the rubber bushings do not provide much in the way positive of lateral support.
It is common to replace the stock rubber panhard bar bushings with polyurethane bushings to resolve the shortcomings of the factory's soft rubber bushings. The downside of polyurethane bushings is they prevent the necessary movement of the panhard bar during body roll, which in turn produces significant binding in the suspension when the vehicle is cornering.
The polyurethane bushings also place high stresses on the panhard bar mounts on the vehicle. Polyurethane bushed panhard bars do not allow for rotation of the panhard bar during cornering because of the stiffness of the bushings.
Del-Sphere Pivot Joints:
The Spohn Performance Del-Sphere pivot joint solves the shortcomings of the factory rubber and aftermarket polyurethane bushings. Our Del-Sphere pivot joint incorporates a spherical ball which is surrounded by Delrin bushing cups.
This combination allows the panhard bar to articulate like a spherical rod end (22º of available rotation) during cornering but the spherical ball does not allow the bushing to deflect. Therefore the panhard bar remains completely bind free like a spherical rod end during cornering for predictable traction in the corners.
Think of the Del-Sphere pivot joint as a Delrin bushed spherical rod end. After over a year of R&D testing here at Spohn Performance on a streetable spherical joint the Del-Sphere pivot joint is the final result. Designed and manufactured exclusively by Spohn Performance, we have taken street suspension performance to the next level.
Our Del-Sphere pivot joint features a one piece forged and heat treated 4130 chrome moly housing, a heat treated and chrome plated chrome moly spherical ball, Delrin bushing cups, heat treated retainer washers and snap ring, an external grease fitting, and a beautiful silver zinc plated housing finish.
The Delrin bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 22º degrees of rotation! We doubt you'll ever need to replace the Delrin bushing cups, but they certainly can be. Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.
What is Delrin, and why did you choose to use it? Delrin is an acetal homopolymer made by DuPont. It is characterized as having an excellent combination of physical properties that make it suitable for numerous applications. With extremely low moisture absorption and a low coefficient of friction (self-lubricating), Delrin is uniquely tailored for wear applications in high humidity or moisture environments.
Delrin will maintain constant physical properties under high moisture conditions and out-perform nylon or polyurethane under these conditions. Delrin has a 10,000 psi tensile strength and a 120 Rockwell Hardness rating making it ideal for our Del-Sphere application.
