Gen 5 Camaro 8 Rib Drive Conversion Kit with Standard Diameter Damper

8 Rib Drive Conversion Kit with Standard Diameter Balancer for 2010 – 2012 Gen 5 Camaro.

NOTE: Innovators West specific pin kit required when used with a stock non-keyed crankshaft.

• NOTE: The Super Duty Blower Hub option is a thicker hub that provides greater resistance to hub cracking under high power supercharged applications (750 rwhp and greater). This option includes a new custom made timing cover seal to adapt the oversized hub to a stock timing cover.

• NOTE: The Underdrive Alternator option is a larger diameter alternator pulley (2.800″) that is designed to slow the alternator down when ran on high rpm race engines (7500 rpm or higher). The underdrive alternator pulley will slow the alternator down and may cause charging issues at idle for street driven vehicles.

• Conversion kit includes:

• Qty	PN	Description
  1	862	8-Rib Drive – Standard Diameter Damper
  1	1007	GM 8-Rib Gen 5 Camaro P/S Pulley
  1	972	GM 8-Rib Smooth Idler Pulley
  1	981	Gen 5 Camaro Idler Pulley Stand
  1	973	GM 8-Rib Ribbed Tensioner Pulley
  1	970	8-Rib GM Alternator Pulley or 1088 Underdrive 8-Rib Alternator Pulley
  1	970-1	Gen 5 Camaro Alternator Pulley Shim

  Any additional aftermarket pulleys must be sourced from the manufacturer of those pulleys. Includes SFI 18.1 Harmonic Damper.

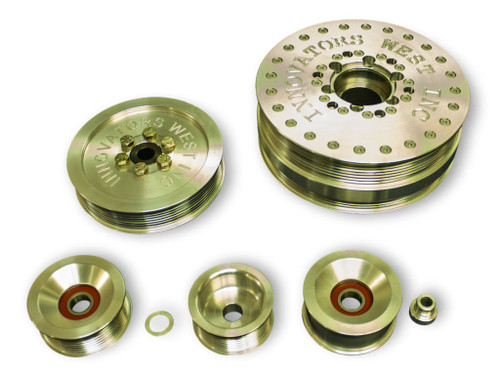

PICTURE SHOWN IS ONLY FOR REFERENCE.
