Product Description:
GMC owners have spoken, and we listened. Here is the long-awaited RTX gauge system to fill up the stock dash panel of your 1955-59 GMC truck. Engineered off of a stock GMC dash, the RTX kit will utilize the stock mounting points for installation requiring no modification to your panel. New CNC machined aluminum Chrome plated gauge trim rings are included.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible.

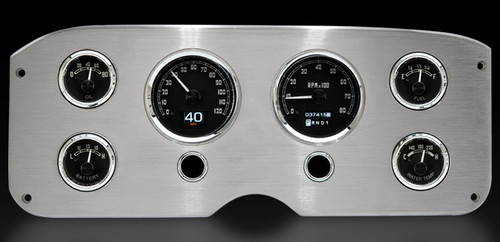

*Bezel/ Facia not included, shown for visual/presentation purposes.
**System uses OEM or reproduction style bezel/ facia.
| Gauge Ranges |
| Speedometer |
| ·Simulated Needle Range up to 200 MPH/ 320 kmh |
| ·Digital numeric range up to 255MPH/ 410km/h. |
| Tachometer |
| ·Simulated Needle Range up to 16,000 RPM |
| ·Digital numeric range up to 16,000 RPM |
| Oil Pressure |
| ·Simulated Needle Range up to 150 psi |
| · Digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9) |
| Water Temperature |
| ·Simulated Needle Range up to 260ºF/ 130ºC) |
| ·Digital numeric range up to 300ºF/ 130ºC) |
| Fuel Level |
| ·Simulated Needle Range can show E, 1/4, 1/2, 3/4, F |
| ·Digital numeric range 0- 100% |
| Voltmeter |
| ·Simulated Needle Range up to 18 VDC |
| ·Digital numeric range 0- 18VDC |
| Clock |
| ·12 Hr Analog/ Digital Clock Movement |
| Digital Message Centers |
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock, Digital (12 hour) |
| ·Estimated Range/ Miles to Empty |
| ·Hour meter |
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 and 1/8 mile time |
| ·1/4 and 1/8 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
| ·G-Meter (GForce) |
| Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
| ·Two Auxiliary input indicators with user-programmable labels |
| ·Each analog gauge sweep contains a indicator light for quick notice of a warning condition (except speedometer) |
**Not all OEM indicator lamp functions will be replaced.
|
|
Lighting Technology |
| Colors |
| ·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital alphanumeric display color. |
| Internal Photo Sensor |
| ·Automatically adjusts gauge brightness based on ambient light. Manual control can be accomplished on-the-fly with the optional DIM-1 dimming knob.. |
| ·Auto High Contrast mode for high sunlight situations to insure the best visibility at all times. |
| ·Auto Night Mode adjusts brightness for low light or night driving. Manual control when wired into headlight circuit dims gauges whenever the headlights are on. (optional) |
| Themes |
| ·With 4 factory preset gauge themes Standard, Performance, Modern and Era and 12 colors color schemes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself. |
| Technology |
| · Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. |
|
Included Sensors |
| Water Temperature |
| ·1/8" NPT, ground isolated sensor with a 10 ft harness. |
| Oil Pressure |
| ·1/8" NPT solid state sensor with a 10 ft harness. |
| Cable Driven Speed Sensor/ Generator |
| ·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.) |
| Bushings |
| ·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. |
| Control Box Dimensions |
| 5.5" x 3.5"x 1" |
|
Calibration and Use |
| Pushbutton Control |
| ·Dakota Digital instrument systems are programmed and operated by the push of a button. A two-sided rocker switch is included with each package; mount this switch in an easily accessible location when in the driving position. The rocker switch provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Once configured, this same switch is used to access the wealth of information located in the digital message centers. |
| Mobile App |
| ·GRFX instrument systems can also be completely configured through the available mobile app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the GRFX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display. |
| Calibration |
| ·All calibration settings are handled through the included pushbutton switch or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle. |
