Product Description:
A&A designed their secondary fuel system for both early and late models with ease of installation in mind. Their system does not require dropping the tanks and complete drivetrain and will supply enough fuel for your 600 to over 1000 RWHP project. This can save 10 hours or more in labor costs alone.
A&A's dual pump system has both pumps built into a single housing making a single line in and out possible. The pumps can be Staged to actuate at different boost levels.

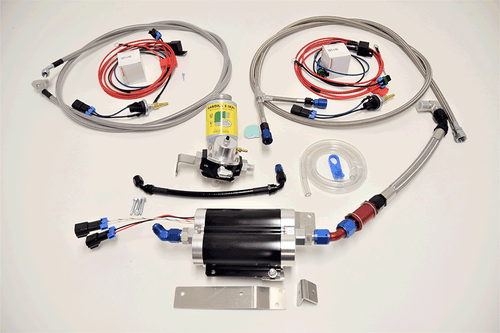

- The system comes with preassembled stainless PTFE lines, two preassembled wire harnesses, two adjustable Hobbs switches, return regulator with polished mounting bracket, high capacity dual pumps, custom made pump mounting brackets, fuel line disconnect tool, drain hose to pump fuel from tank, filter and all necessary fittings. The system is E85 compatible.
- A&A lines are assembled using a 10,000# hydraulic press with heavy duty Stainless Steel crimp sleeves. Each hose is pressure checked at A&A's facility before shipment.
- A&A pressure line snaps onto your factory fuel rail and factory fuel feed line with Russell quick connect fittings just like the OE lines. There is absolutely no fabrication of lines and fittings needed.
- Both the fuel pressure and the boost level at which the pumps turn on are fully adjustable.* A&A heat shrinks all connections, use Weather Pack style connectors and genuine Hobbs pressure switches for reliability.
- Pump flows 530 LPH or 140 GPH at 60 PSI fuel pressure.
- This system is rated at 1200 HP at 60 PSI. For horsepower levels above this, they can simply add a Boost A Pump, or even 2 Boost A Pumps for extremely high horsepower applications.
- The beauty of this system is that only the factory pump runs under most driving conditions. Running a secondary pump or dual in tank pumps full time only serves to heat up the fuel and cause its own set of problems. Those setups are also terribly annoying. Listening to a noisy fuel pump singing all the time will drive you nuts!
- A&A's system is seamless and quiet. You’ll never hear the pump as it only comes on under boost, when it’s needed.
