Product Description:

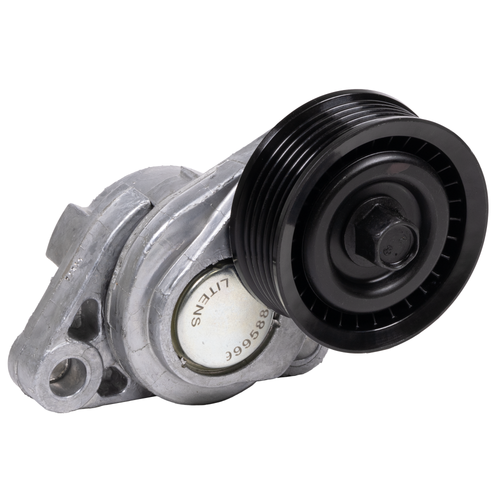

The Gates 38195 belt tensioner is commonly used on Chevy LS series engines. The accessory belt drive tensioner automatically adjusts tension in the Micro-V belt to ensure proper function and output of accessory components, dampens peak loads during engine acceleration and deceleration, and ensures your belts and engine perform when your offroad racing vehicle needs them most. From casting quality to the design of internal components, Gates understands that every aspect of a tensioner is critical to long service life, which is why they've engineered their DriveAlign tensioners to exceed some of the most rigorous quality and performance standards in the industry.
Gates 38194 Specifications
Bearing Bore Inside Diameter: 0.67"
Bearing Bore Inside Diameter: 17mm
Belt Type: V-Ribbed
Contact Surface: V-Ribbed Grooved
Material: Thermoplastic
Mounting Hole Quantity: 2
Number of Grooves: 6
OE Comparison Rating: OE Exact
Outside Diameter: 2.76"
Outside Diameter: 70mm
Pulley Quantity: 1
Width: 0.98"
Width: 25mm
Applications:
Chevrolet 5.7L Z06 Corvette: 1997-2004
Alternate Numbers:
12559325
12568181
Dayco 305337
