2010-15 Camaro L1 Fuel System (Triple Pump) - Select Application, Prices Vary

Write a Review

SKU:: 43-511

UPC:
Width:: 9.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Calculated at Checkout

Select Primary Fuel Pump: Required

Select Secondary Fuel Pump: Required

Select Electrical Upgrades: Required

Select Fuel Pressure Regulator: Required

Select Fuel Lines: Required

Select Filtration Media: Required

Upgrade to 128mm Filter: Required

Add Billet Mounting Bracket: Required

Add Filter Monitoring Gauge and Fitting: Required

Add 0-100 psi Fuel Pressure Gauge: Required

Add Honeywell Pressure Switch for FC3: Required

Add Flex Fuel Sensor Intercept Fittings: Required

Add Boost / Vacuum Manifold Kit: Required

Current Stock:

$1,424.00

Quantity:

Add to Cart

Product Description:

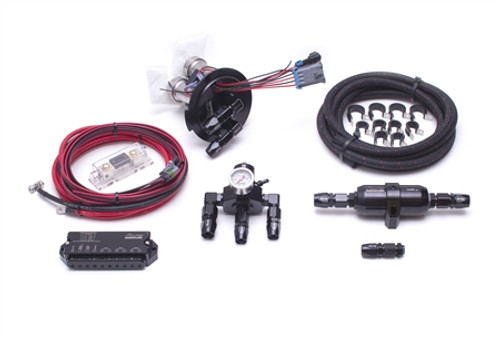

2010-15 Camaro L1 Fuel System (Triple Pump) - Select Application, Prices Vary- PICTURE IS FOR REFERENCE ONLY!

Boost Referenced Return System for 1000+ rwhp. Use with OEM fuel rails.

INCLUDES

Camaro Fuel Pump Module (triple pump)
F1i Fuel Pressure Regulator
88mm Inline Fuel Filter
FCV Checkvalve
All fittings, hose, hardware required for typical fuel line plumbing

-30 feet of fuel line (your choice)
-10 billet compression style hose ends
-Qty 4, billet low profile 90 degree AN to o-ring fittings
-Qty 3, billlet straight AN to o-ring fittings
-Qty 1, 3/8 EFI male to AN-8 male adapter
-Qty 10, hose straps with stainless mounting screws

OPTION NOTES:

FILTRATION MEDIA

CELLULOSE FILTER ELEMENT
-cellulose element, bonded aluminum endcaps, Viton o-ring
-provides 10 micron nominal, 14 micron absolute filtration
-use with gasoline and race gas
-disposable
-recommended filtration for use with Injector Dynamics fuel injectors

MICROGLASS SSD (ANTI-STATIC) FILTER ELEMENT
-microglass element, static dissipating, bonded aluminum endcaps, Viton o-ring
-provides 12 micron absolute filtration
-use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)
-disposable
-recommended filtration for use with Injector Dynamics fuel injectors

STAINLESS FILTER ELEMENT
-stainless element, stainless endcaps, Viton o-ring
-provides 10 micron nominal, 26 micron absolute filtration
-use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)
-re-usable

*128mm Filter-Upgrade from standard 88mm filter to 128mm filter length for more filtration capacity and more time between service intervals.

*Filter monitoring gauge and fitting-Use to monitor fuel pressure before filter to inspect filter health. A higher pressure before filter indicates loss across the filter. If ignored, substantial filter obstruction will lead to reduced pump performance, shortened pump life, and higher fuel heat. Fitting is includes to allow precise orientation of pressure gauge.

*Boost / Vacuum manifold kit includes the following: Fore Innovations Boost / Vacuum Manifold, 3 x 1/4" barb fittings, 4 x plugs
