Product Description:

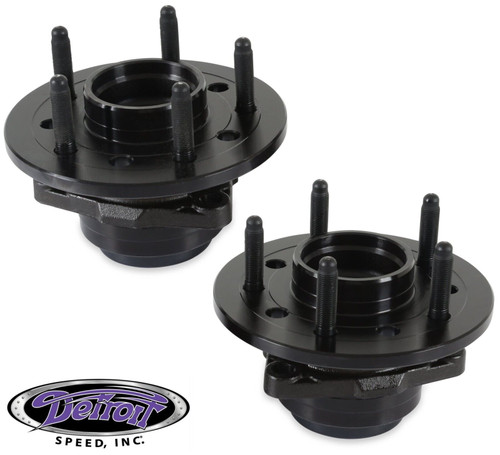

1999-2007 Silverado/Sierra 2WD DSE 5-Lug Conversion Wheel Hubs Dual Bolt Pattern
***DSE Wheel Hubs do NOT have ABS sensors***
***NOT compatible with 4WD applications***
New Brake Rotors Required, DSE offers Dual Pattern 13-inch Brake Rotors (Part Number: 050403DS)
The Detroit Speed Wheel Hub Conversion Kit will convert your 1999-2007 2WD Silverado/Sierra to a 5-lug bolt pattern. This will allow you to have more options for aftermarket wheel and brake systems. The DSE wheel hubs have both 5x5-inch and 5x4.75-inch bolt patterns. The use of high performance hubs results in improved hub stiffness and performance, reduced brake caliper piston knock-back as well as improved hub durability. The wheel hub remains in the factory location and does not affect wheel offset.
NOTE: New front brakes are required parts for the DSE Wheel Hub Conversion Kit. OE-style new
front brake upgrades are recommended below. Aftermarket front brake systems are also
available through Baer and Wilwood.
OE-style Brake Recommendations:
Front Caliper, RF Raybestos FRC11713N or AC Delco 18FR2246N
Front Caliper, LF Raybestos FRC11714N or AC Delco 18FR2247N
Front Brake Pads Raybestos EHT1363H or AC Delco 17D1363CHF1
Brake Hose Raybestos BH38102 (Use on 1967-72 applications)
Brake Hose, RF Raybestos BH 38065 (Use on 1973-87 applications)
Brake Hose, LF Raybestos BH 38066 (Use on 1973-87 applications)
Brake Rotor, 13” Detroit Speed 050403DS
Baer Brake System Part Numbers:
4301586 Pro+ 13” rotor (R, B, or S for caliper color)
4301587 Pro+ 14” rotor (R, B, or S for caliper color)
4301588 Extreme+ 14” rotor (R, B, or S caliper color)
Wilwood Brake System Part Numbers:
140-16781 Superlite 6 piston caliper, 13.06” slotted rotor, black powder coat
140-16781-D Superlite 6 piston caliper, 13.06” drilled & slotted rotor, black powder coat
140-16781-DR Superlite 6 piston caliper, 13.06” drilled & slotted rotor, black powder coat
140-16781-R Superlite 6 piston caliper, 13.06” slotted rotor, red powder coat
140-16780 Aerolite 6 piston caliper, 14.25” slotted rotor, black powder coat
140-16780-D Aerolite 6 piston caliper, 14.25” drilled & slotted rotor, black powder coat
140-16780-DR Aerolite 6 piston caliper, 14.25” drilled & slotted rotor, red powder coat
140-16780-R Aerolite 6 piston caliper, 14.25” slotted rotor, red powder coat
Features:
Convert your 6-Lug Hub Packs to a 5-Lug for more aftermarket wheel and brake options
100% Bolt-On for a Quick and Easy Installation in your Garage
Modern Wheel Hub Bearings with Dual Bolt Pattern (5x5-inch or 5x4.75-inch)
1/2"-20 Bullet Nose Machined Wheel Studs
Electroplated Black Zinc Rust Proof Coating
Specs:
2WD/4WD 2WD
Bolt Pattern 5 x 4.75 , 5 x 5
Brand Detroit Speed
Color/Finish Electroplated Black Zinc
Emission Code 6
Material Forged Steel
Product Type Front Suspension
Wheel Stud Finish Electroplated Black Zinc
Wheel Stud Material Steel
Wheel Stud Thread Size 1/2"-20
Wheel Studs Included Yes
UPC 090127820070
California Proposition 65 Required Yes
Part Number 030603DS
