Product Description:

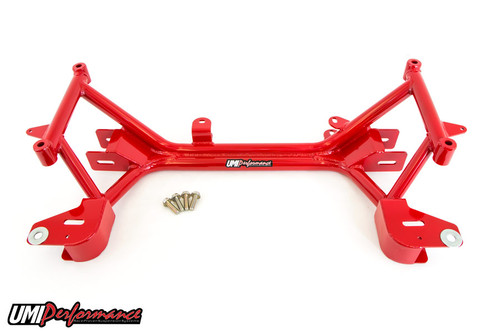

UMI Performance k-member P/N 2318 is designed to be used in conjunction with motor plates and is supplied without motor mount stands. UMI P/N 2318 features power steering rack mounts and is designed to be used with factory power steering or manual racks that use the factory power steering mounts. UMI P/N 2318 is 30lbs lighter than the factory k-member and fits all 93-02 GM F-Bodies. P/N 2318 k-member is supplied bare metal or can be purchased powder coated red or black for an additional cost.
Build Features:
– Main center tube constructed of 1.500” x 0.120” DOM seamless steel tubing
– Additional cross braces use 1.250” x 0.120” DOM seamless steel tubing
– K-member Features Both TIG & MIG welded construction for superior strength
– Front & rear a-arm mounts CNC machined and fabricated from 0.188″ thick steel
– Rear a-arm mounts gusseted to with-stand extreme side loads & pressure
– Dual tube center section adds increased strength over any competitors design
– All mounting plates are CNC machined to guarantee hole to hole accuracy
– Factory locator pins included for easy installation & exact fit
– Completely fixture welded for factory fitment with no grinding or cutting
– Durable Powder Coat available
K-Member Benefits:
– Automatically reduces front end weight by 30lbs
– Offers additional clearance for headers & turbo piping
– A-arm slots lengthened a 1/2″ for additional adjustment when needed
– Rear main cross tube lowered for oil pan protection & coverage
